3.1 Monitoring and Control |
Data collected from engines, generators, pumps, tanks and other onboard sensors and equipment is presented together with alarm information. Usingthe built-in speechengine, alarms are read aloud as they emerge. Main engine,generators, all pumps, air condition, navigational lights, fuel system, blackwater treatment plant, watermakers and power management system are all controlled from the yacht management system.
A customizable database keeps track of the precise extent and type of the attached equipment combined with alarm limits and information. |
 |
| 3.2 Navigation |
| A fully featured navigation software program is accessible from any computer attached to the network. |
| 3.3 Entertainment |
A centralized media server provides a permanent store for music and movies. Thereby differentmedia are easily served to any computer in the network. To enjoy any type of media just select it from the play list and of you go. Picture and sound fill your screen and your surround speakers.
Available DVD-movies, surveillance cameras, CD-music, digital satellite television and radio channels are organized in play lists making finding and playing any type of media extremely simple.
Play lists are managed centrally and stored along with the media on the media server. When serving movies and other media, guests can independently select any movie or media at any time. It is no longer necessary to watch the same movie at the same time or different movies atdifferent times. |
 |
3.4 Communication
If connected to the internet, guests and crew will have access to World Wide Web and email from any computer. |
3.5 Documentation
Documentation, system help, manuals, photos, drawings, parts lists and other information are easily accessible from any location on the yacht. |
3.6 Technical Overview
Based on readily available hardware, the yacht management system consists of three servers and any number of client computers connected by an Ethernet network. All computers have Windows 2000 installed. The system further includes a set of input/output modules interconnected by a field bus.
Surveillance video and antenna signals for satellite television are distributed on a dedicated coaxial network. |
3.7 Servers
Three special purpose servers each play an important role:
The data acquisition and processing server controls the data transfer to and from the input/output-modules on the field bus. Data is processed by the server and distributed to all client subscribers.
The ECDIS server is responsible for distributing charts and navigational information to clients.
Finally, the media server stores and serves media like DVD-movies and CD-music. The server is equipped with a high capacity hard disk array. |
 |
3.8 Clients
Client computers are personal computers extended with specialized hardware for the reception of digital satellite television and video surveillance. Together with the attached LCD-screen and surround-speakers, each client computer makes up a complete information and entertainment system.
Four 18” LCD monitors on bridge
Two 18” LCD monitors on flybridge
One 22” LCD monitor in owner’s cabin
One 22” LCD monitor in salon
One 18” LCD monitor in port guest cabin
One 18” LCD monitor in starboard cabin
One 18” LCD monitor in crew mess
One 18” LCD monitor in captain’s cabin
|
4. COMMUNICATION |
 |

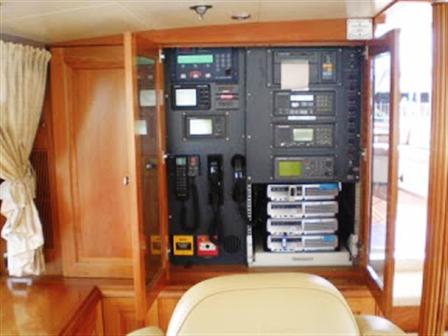

A complete A2 GMDSS system including :
2 pcs portable VHF McMurdoc R1
1 pcs Radar transponder McMurdoc RT-9
1 pcs EPIRB, (floating model) Tron 40S
1 pcs EPIRB, (handheld) Tron 45S
1 pcs Navtex receiver Furuno NX 500
1 pcs Furuno FM-8500 VHF/DSC
1 pcs Furuno FS-1562-15 MF/HF SSB
1 pcs Furuno DSC-60 MF/HF DSC
1 pcs Furuno FM 2721 VHF DSC
3 pcs handheld VHF
1 pcs TT 3000-CM mini M with Capsat GMDSS double system w/ INM-C |
5. DECK EQUIPMENT |
| Royal Denship stainless steel blocks, Frederiksen travellers and tracks.

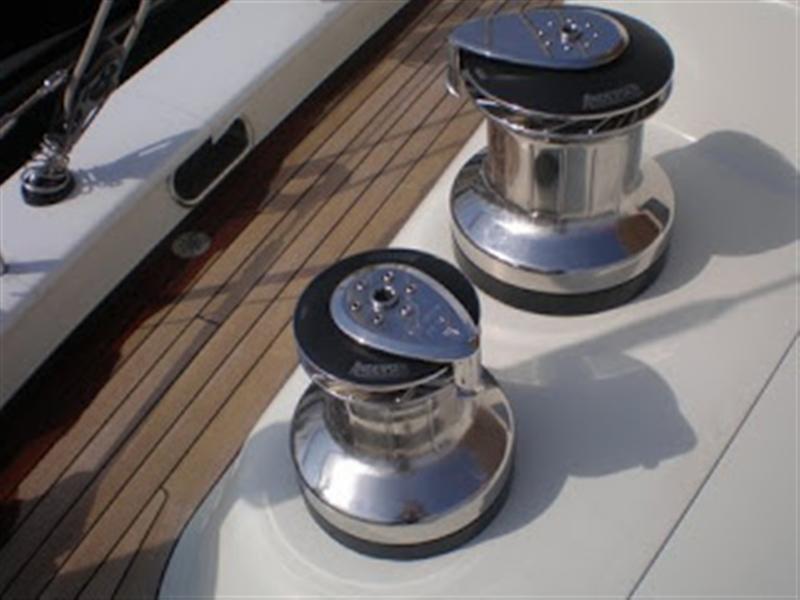

Andersen stainless steel winches
Cariboni Magic Trim hydraulic sheeting system for mainsail and staysail. |
 |
|
5.1 Hatches
Rondal flush hatches. |
5.2 Windlass
Richfield type |
5.3 Anchor
2 plow type anchors 75kg. and 125kg. A spare admirality type 100 kg. |
| |

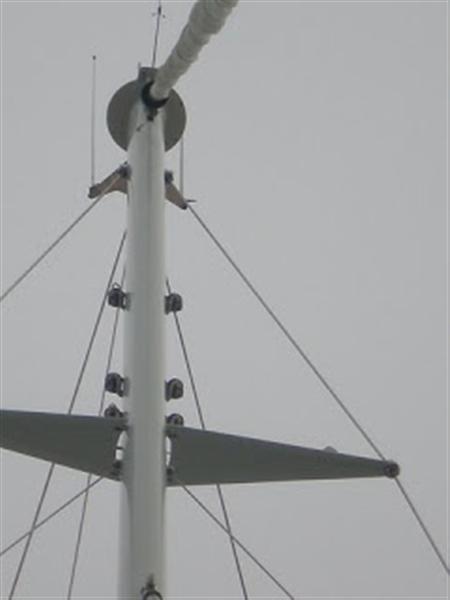

5.4 Spars
Carbon fiber mast fitted with Frederiksen series 300 Batten car System and carbon boom with integrated Cariboni Magic Trim Main Sheet system. |
|
5.5 Running rigging
Spectra/vectran. |
5.6 Standing rigging
Rod rigging
Bamar hydraulic furlers. |
| |
 |
5.7 Sails
Dacron main, genoa, staysail |

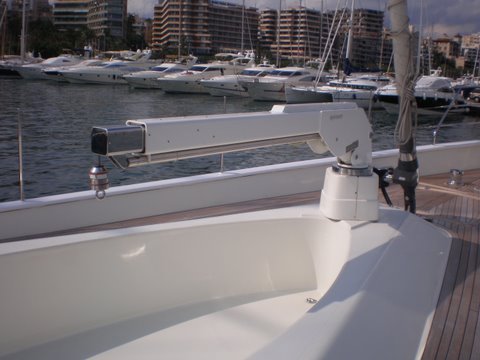

5.8 Tender
Zodiac Yacht Line 420DL with a 40Hp 4-stroke outboard engine. Tender is recessed in the Jacuzzi on the foredeck. Lounched by the help of deck crane. |
5.9 Passarelle
Carbon fiber multiplex telescupic hydraulic passarelle 320. |
 |
5.10 Safety
Two Autoflug 8 pers. Life rafts in container.
Watermist firefighting system throughout the yacht.
Local fire extinguishers in every compartment |
 |

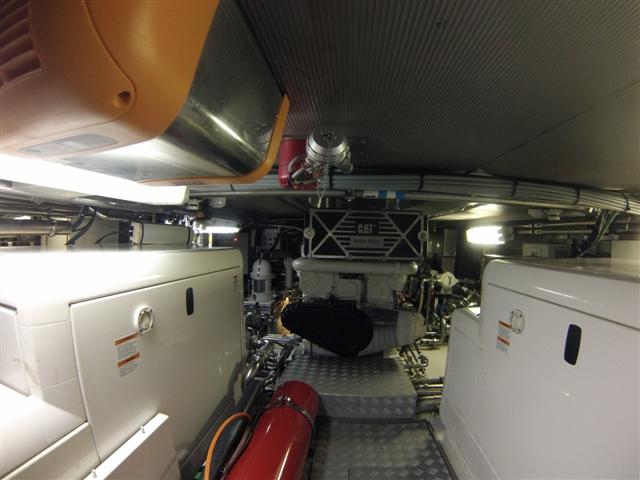

6.1 Main Engine
Caterpillar 3406 E DITA, 600 BHP, Hundested variable pitch propeller with Hundested gearbox. Remote oil filters and 24 volt oil change pump. |
6.2 Generators
Two Kohler 30 KW generators, 230V 50hz
One Kohler 6KW /230V 50hz night/emergency generator placed in lazarette. |
 |
6.3 Thrusters
Hundested 50HP hydraulic bow thruster
Richfield 35 HP retractable hydraulic stern thruster |
 |
6.4 Air Condition
100.000 BTU air conditioning with four independent compressors and with electrical heating system, feeding chilled/heated water circulating system to fan coil units in all cabins.
An extra siplip system for sloon area 30 000 BTU |
6.5 Water Makers
Two Idromar watermaker model MC2J, total capacity 6200 liters per day. |
 |
6.6 Air Compressor
Yamaha 10 atu. |
 |

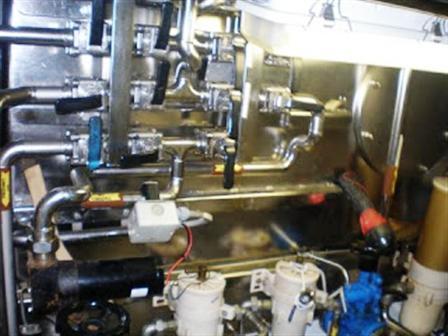

6.7 Fuel System
Alfa Laval fuel separator.
Four Racor fuel filters |

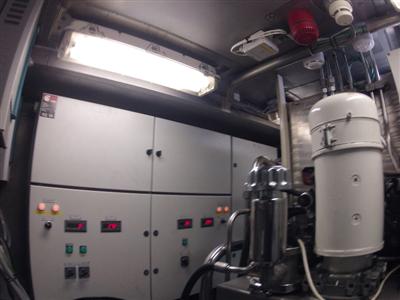

6.8 Hydraulic System
Central hydraulic system supplying all deck winches, hydraulic sheeting systems, sail furlers, transom door and paserella.
Hydraulic anchor winch, stern and bow thrusters, are driven from PTO on gearbox |
 |
 |

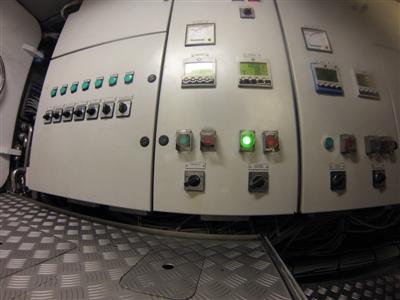

6.9 24 Volt Service
One main service battery bank 24Vdc, 1500 amp-hour. Master volt
One hydraulic battery bank 24Vdc, 400 amp-hour
One emergency battery bank 24Vdc 100 amp-hour
Five Mastervolt 100 A 24 V battery chargers
One Mastervolt 50 A 24V battery charger |

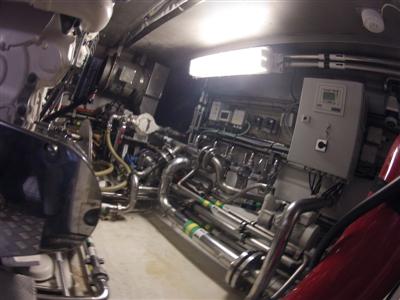

6.10 Sanitary Systems
Black and gray water systems are piped to a Hamann Wassertechnik treatment plant with a capacity of 2520 liters per day.
In addition wastewater can be pumped dockside.
Black water tank capacity is 1000 liters.
Grey water tank capacity is 2000 liters.
Toilets are by ITT Jabsco. |
 |

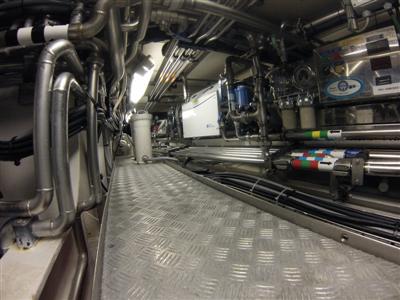

6.11 Freshwater System
The freshwater system consists of stainless steel and Pex type of piping.
Two ITT Jabsco redundant hydrophore pumps.
Two pressure tanks.
One ultraviolet sterilizing unit
Two 50 Liter hot water tanks
220V and Grundfoss hot water circulating pump |

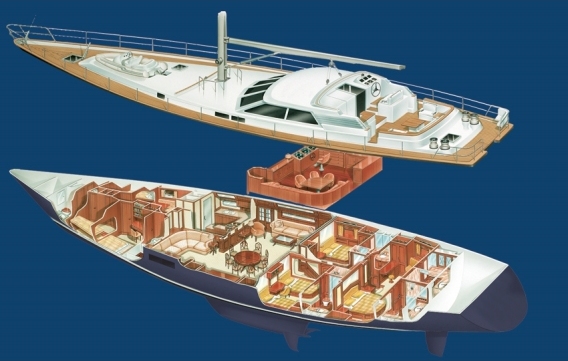

7. ACCOMMODATIONS
All interior panels and joinery made from the finest American cherry wood. All wood surfaces are finished with 6-10 coats of varnish to the interior design specifications by Francois Zuretti with only the best Italian fabrics and the finest Italian marble crafted by highly skilled Danish and other European craftsman. Vera 4 Gallery |
|
7.1 Owner’s Suite
Cabin with queen size bed, drawers below bed, bedside cabinets each side, desk with drawers,love seat sofa to starboard, full height hanging wardrobes port and starboard. Ensuite his and her bathroom with shared shower.
|
 |
 |

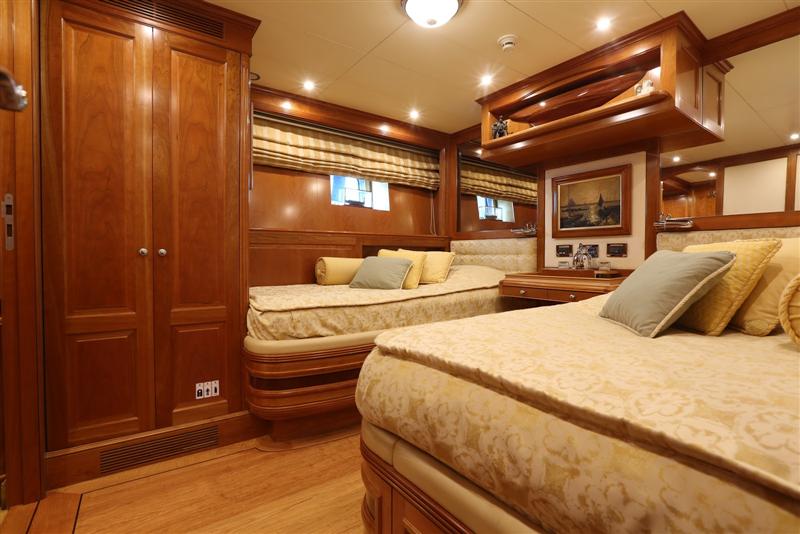

7.2 Guest Suites
Port guest cabin, twin beds, desk/dressing table, full height wardrobe. Ensuite shower stall and head.
Starboard guest cabin with double bed, drawers below bed, bedside cabinet, chair, full height hanging wardrobes. Ensuite shower and head. |

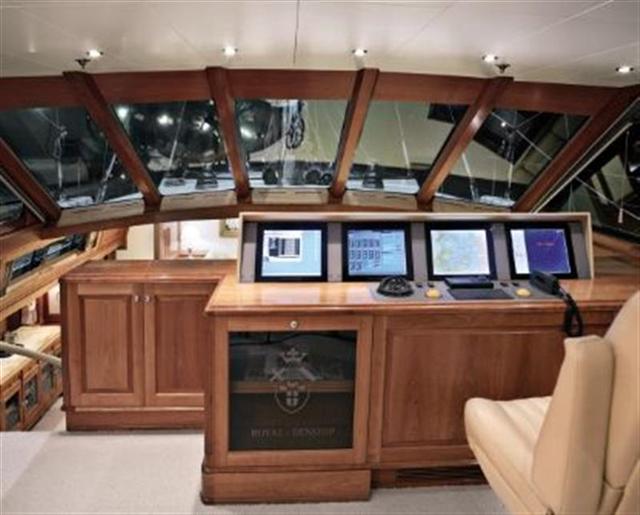

7.3 Wheelhouse
To port, a fully upholstered corner sofa with a coffee table, to starboard aft, the fully enclosed GMDSS radio station and in front of the wheelhouse are the navigation
computers nicely integrated in the wheelhouse console while stairway forward leads to the lower saloon. |
 |

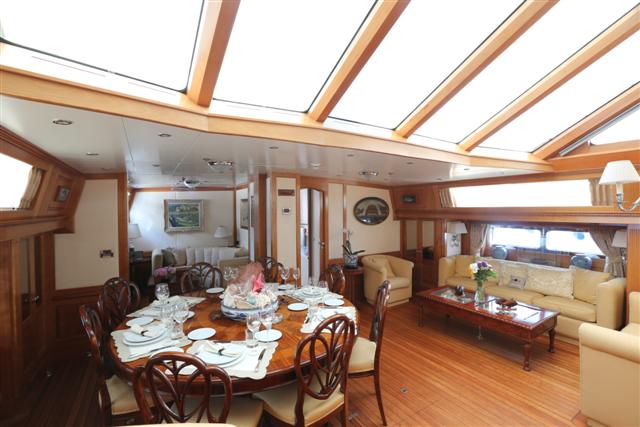

| 7.4 Lower Saloon |
 |
 |
Lounge area to starboard with fully upholstered sofa and loveseat and a coffee table. To port is the dining area with seating for up to eight people, and to port and starboard are generous storage cabinets and lockers.
A confortable L shape sofa and coffy table maintains while whachin TV. |

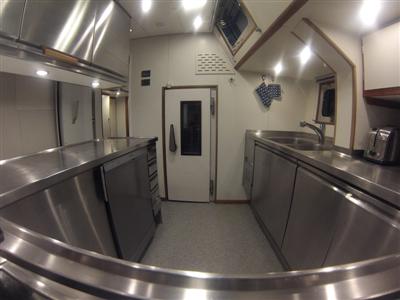

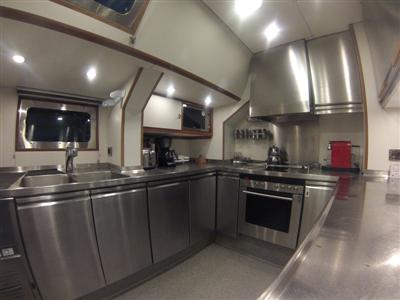

7.5 Galley
To starboard on the aft forward bulkhead are full height walk in refrigerator and freezer. To starboard on the aft bulkhead is an electric oven and stove, microwave oven with grill, icemaker and trash compactor. The entire galley is built in stainless steel and the counter top has two integral sinks. Under the counter top is the dishwasher. Galley floor by Pirelli rubber.
|
 |
 |
7.6 Galley Appliances
- One Siemens Stove
- One Siemens Microwave
- One Icemaker
- One Trash compactor
- One Siemens Dish washer
- One Grill
- Fabricated Stainless steel hood with exhaust fan |

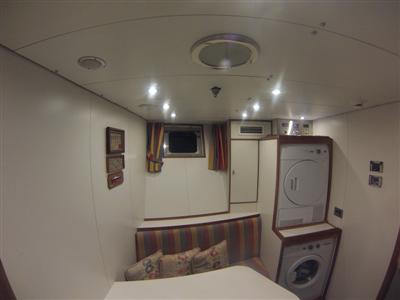

7.7 Laundry
The laundry is located in the crew mess and includes one Siemens Washer and one Siemens Dryers plus an ironing facility and a sink.
|
 |
 |

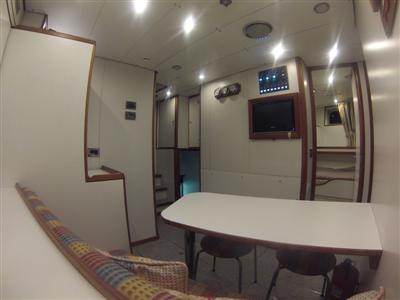

7.8 Crew Mess
Mess table with bench seating. Full monitoring and control of the alarm and electrical system. Companionway ladder leads to foredeck via glazed hatch. |

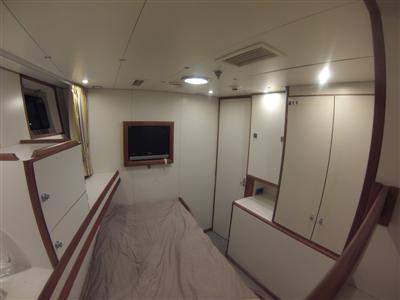

7.9 Captain’s Cabin
Double bed with drawers under and mirror fronted hanging locker. A desk and ensuite shower and head.
|
 |
 |

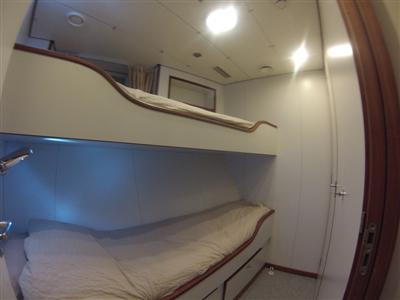

7.10 Crew Cabins
Port and starboard cabins with upper and lower bunks, drawers under lower berth, full height hanging locker. Crew cabins share a common shower and head. |
|
